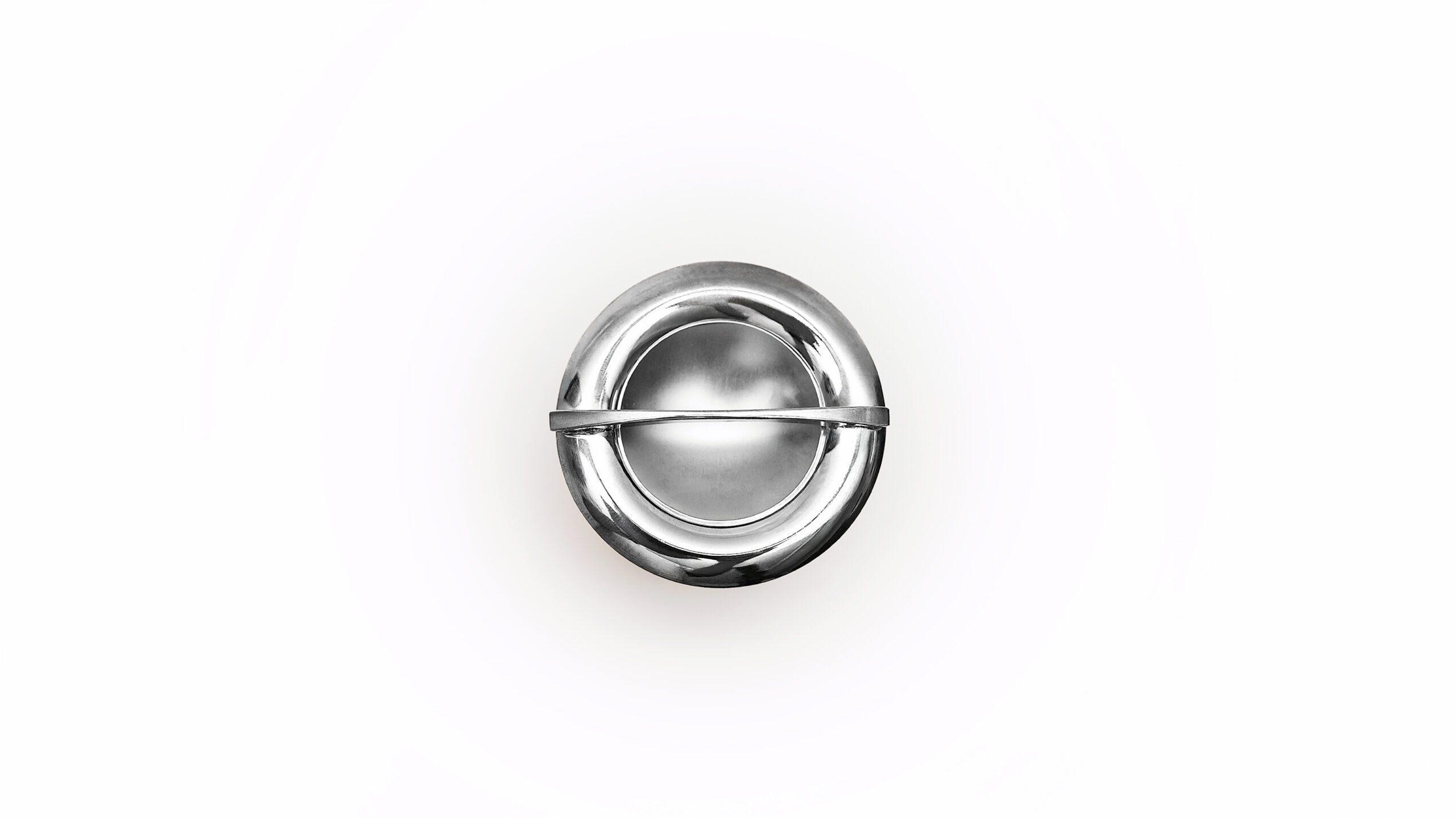

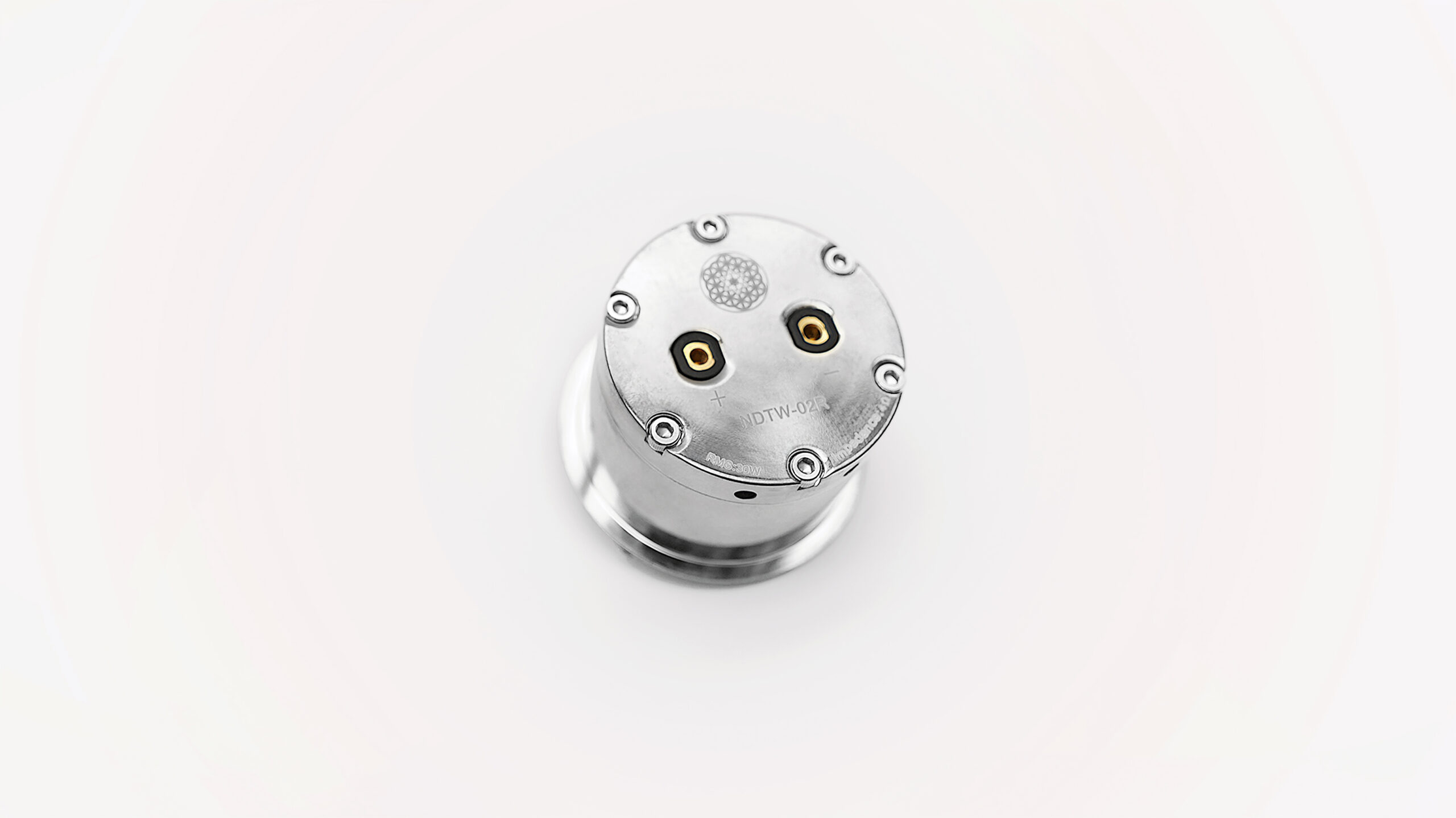

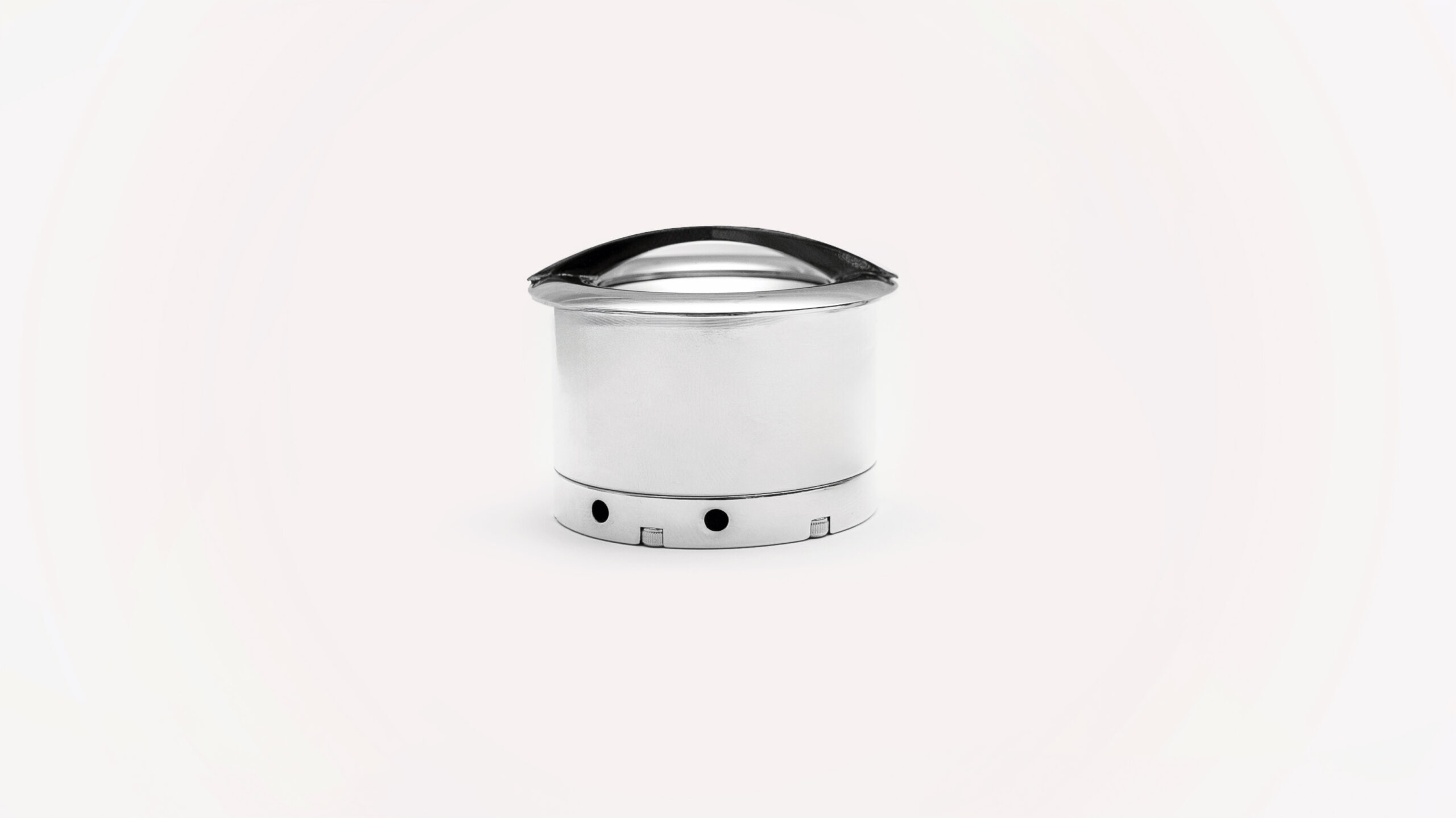

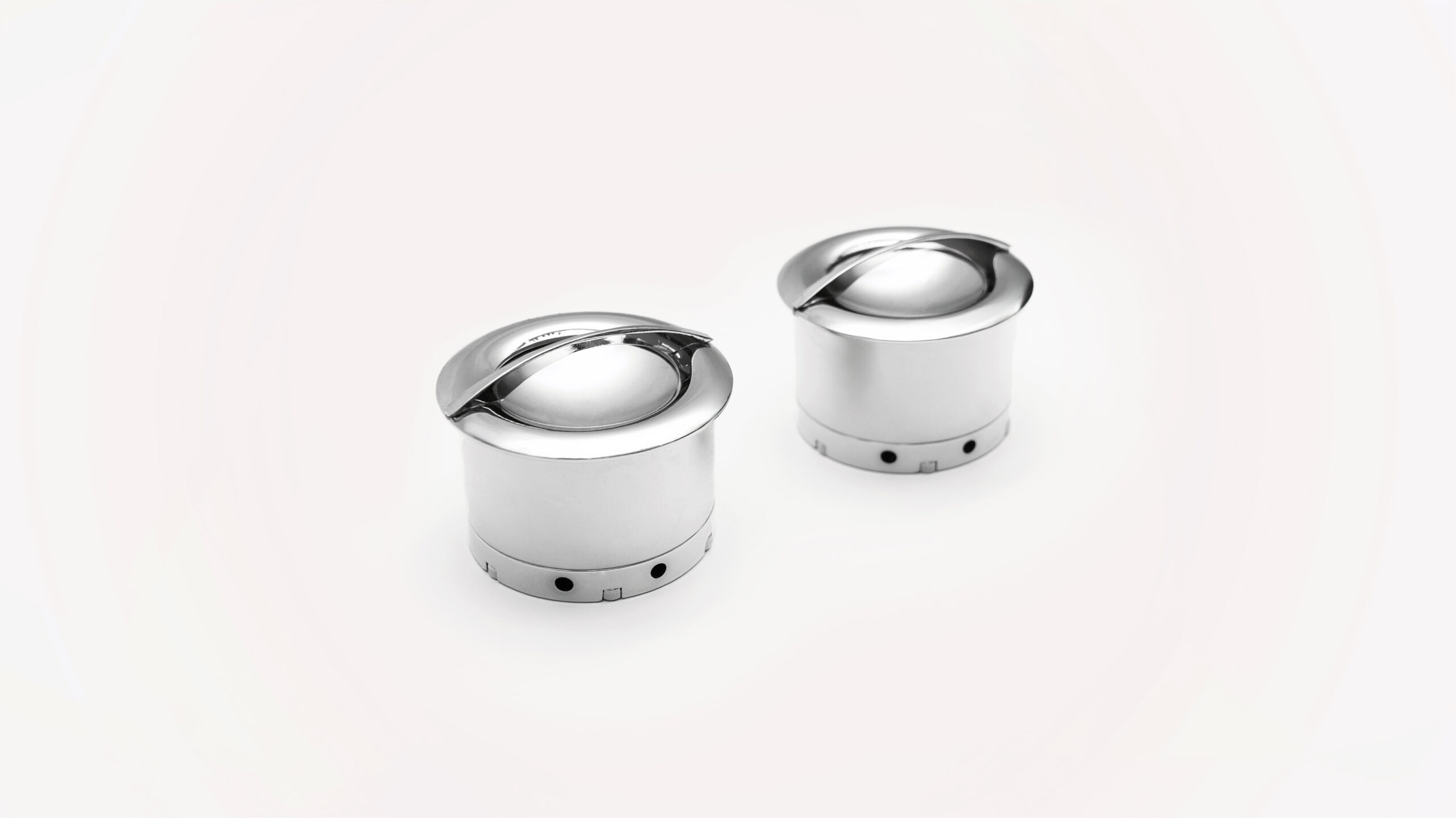

The NDTW-02R This Diamond tweeter speaker using stainless steel housing and high-quality design, is well-suited for reproducing high-frequency sounds with clarity and precision. Using Diamond Cone Material, it offers a good high extend frequency and good balance between sensitivity and power handling, making it a versatile component for various audio applications. The specified mounting dimensions and weight make it suitable for various speaker cabinet designs and installations.
| Specification | |
|---|---|
|
Model |
NDTW-02R (25 Core Tweeter) |
|
Product Process |
Stainless Steel Housing, Hand-polished |
|
Product Design |
1.5 Inch / 25 mm Diamond Cone Material with optional acoustic chamber, stainless steel clamping ring with rubber ring, and screw set |
|
Impedance |
4 Ω |
|
Frequency response |
1KHz - 60KHz |
|
Sensitivity |
≧ 89db |
|
Rated Power |
25 W |
|
Peak Power |
50 W |
|
Mounting Diameter |
60 mm |
|
Screw Diagonal Diameter |
45 mm |
|
Mounting Hole Diameter |
46 mm |
|
Mounting Depth |
25 mm |
|
Weight |
135 gram |
