SUBWOOFER SERIES

NSW-02R

Previous slide
Next slide

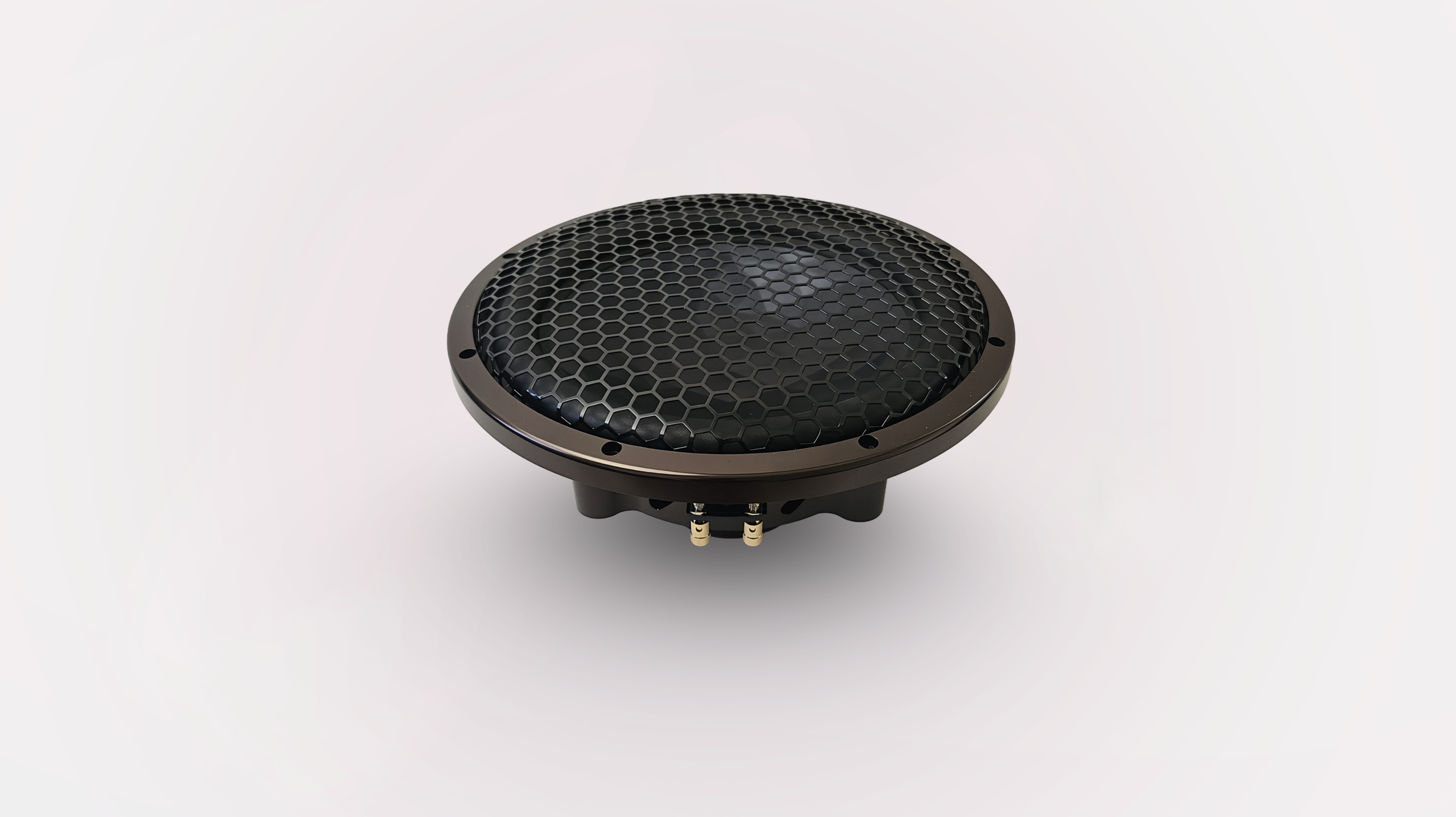

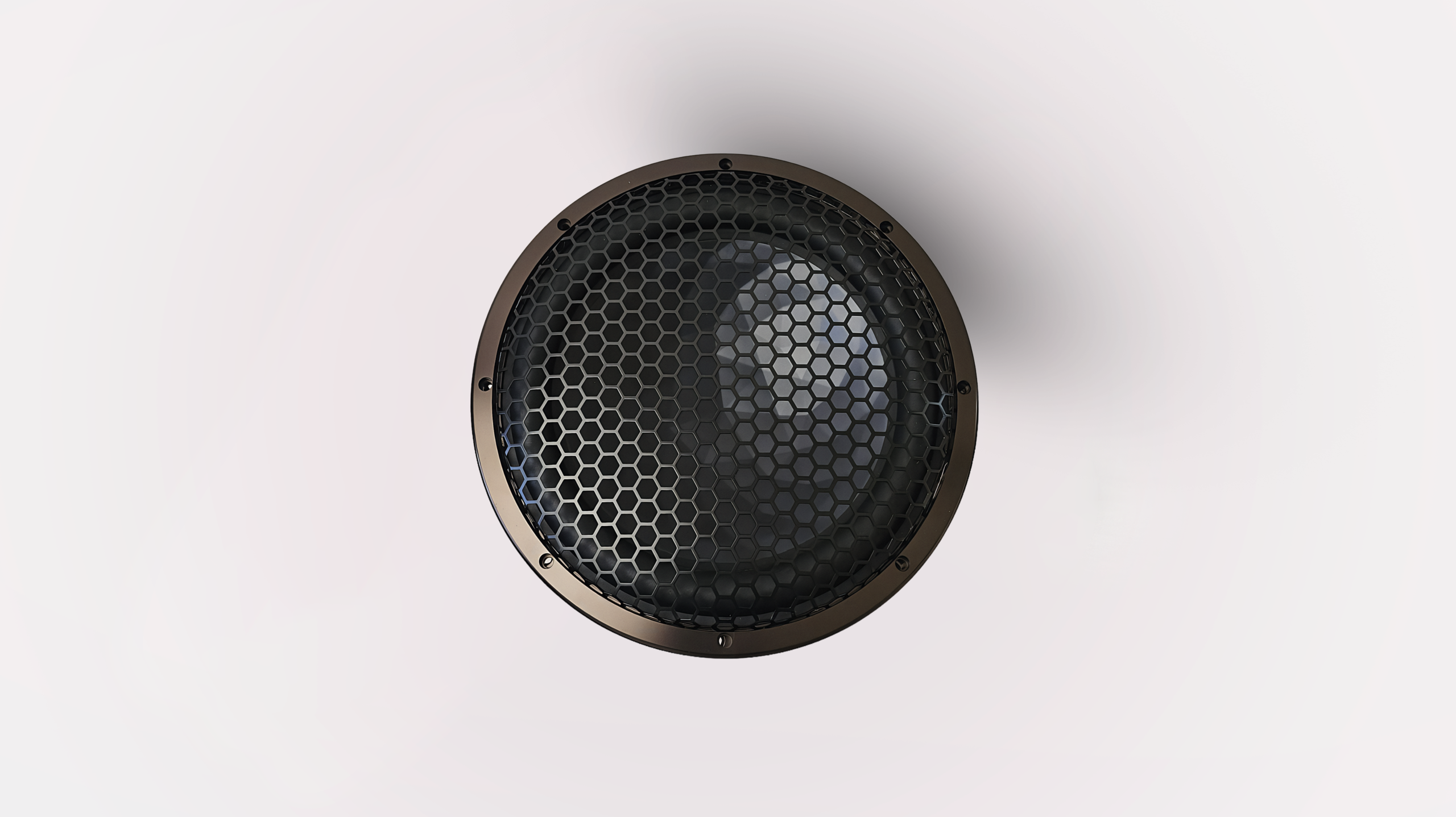

This 10-inch subwoofer, High End handmade to ensure quality, is designed to excel in reproducing deep and powerful low-frequency sounds, making it ideal for enhancing the bass performance of audio systems.

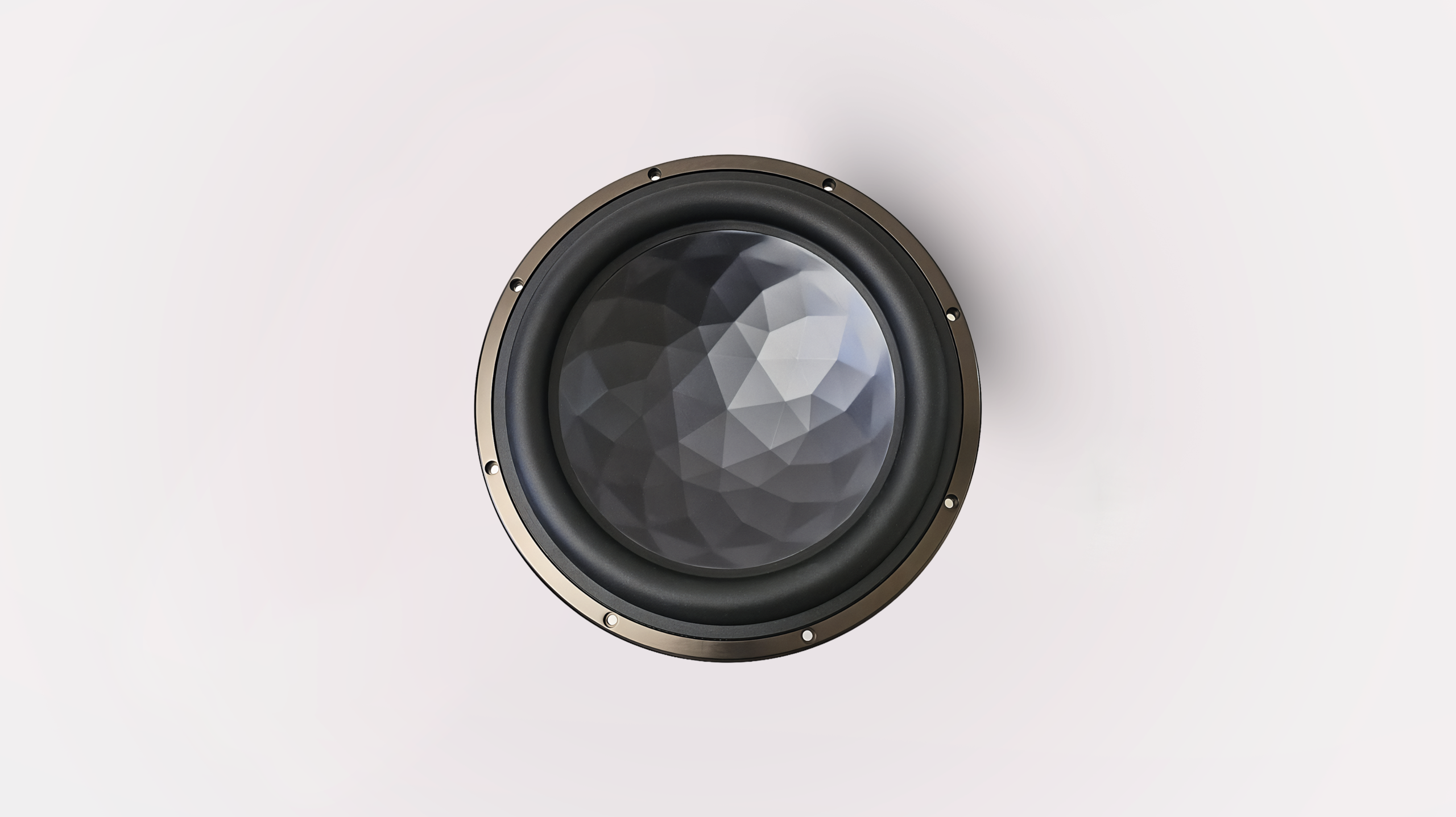

The first in the world to use a 10″ diamond cone. With its high power handling capacity and substantial sensitivity, it’s well-suited for delivering impactful and dynamic bass. The specified mounting dimensions and weight indicate that it is suitable for various subwoofer enclosure designs and installations.

Specification
Model
NSW-02R (10 Inch Subwoofer)
Product Process
Handmade
Impedance

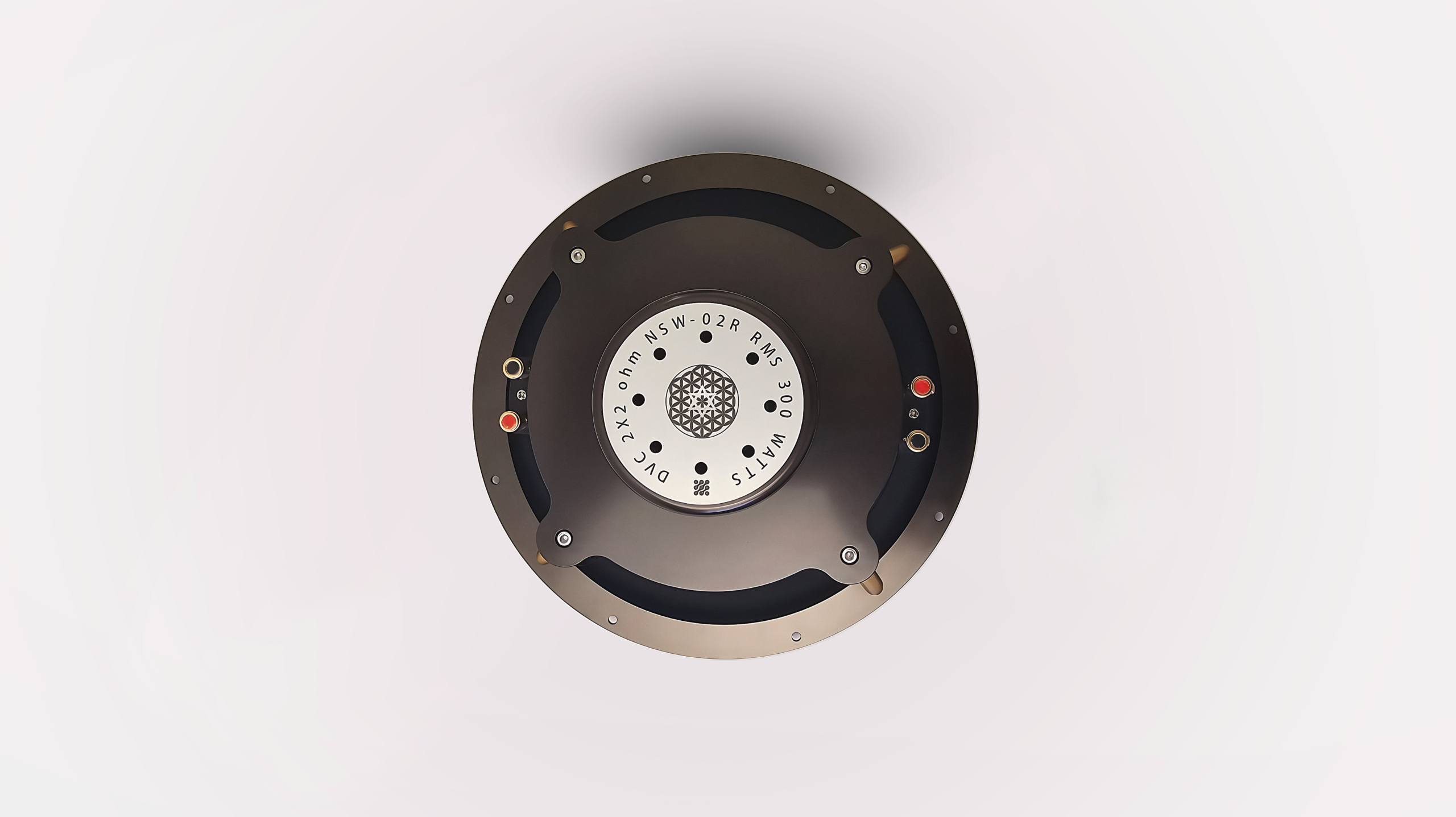

2x2Ω DVC
Frequency response
32Hz - 2KHz
Sensitivity
≧ 88db
Rated Power
300 W
Peak Power
600 W
Mounting Diameter
260 mm
Screw Diagonal Diameter
245 mm
Mounting Hole Diameter
235 mm
Mounting Depth
132 mm
Weight
3.0 kg
