MIDRANGE SERIES

NMR-01

Previous slide
Next slide

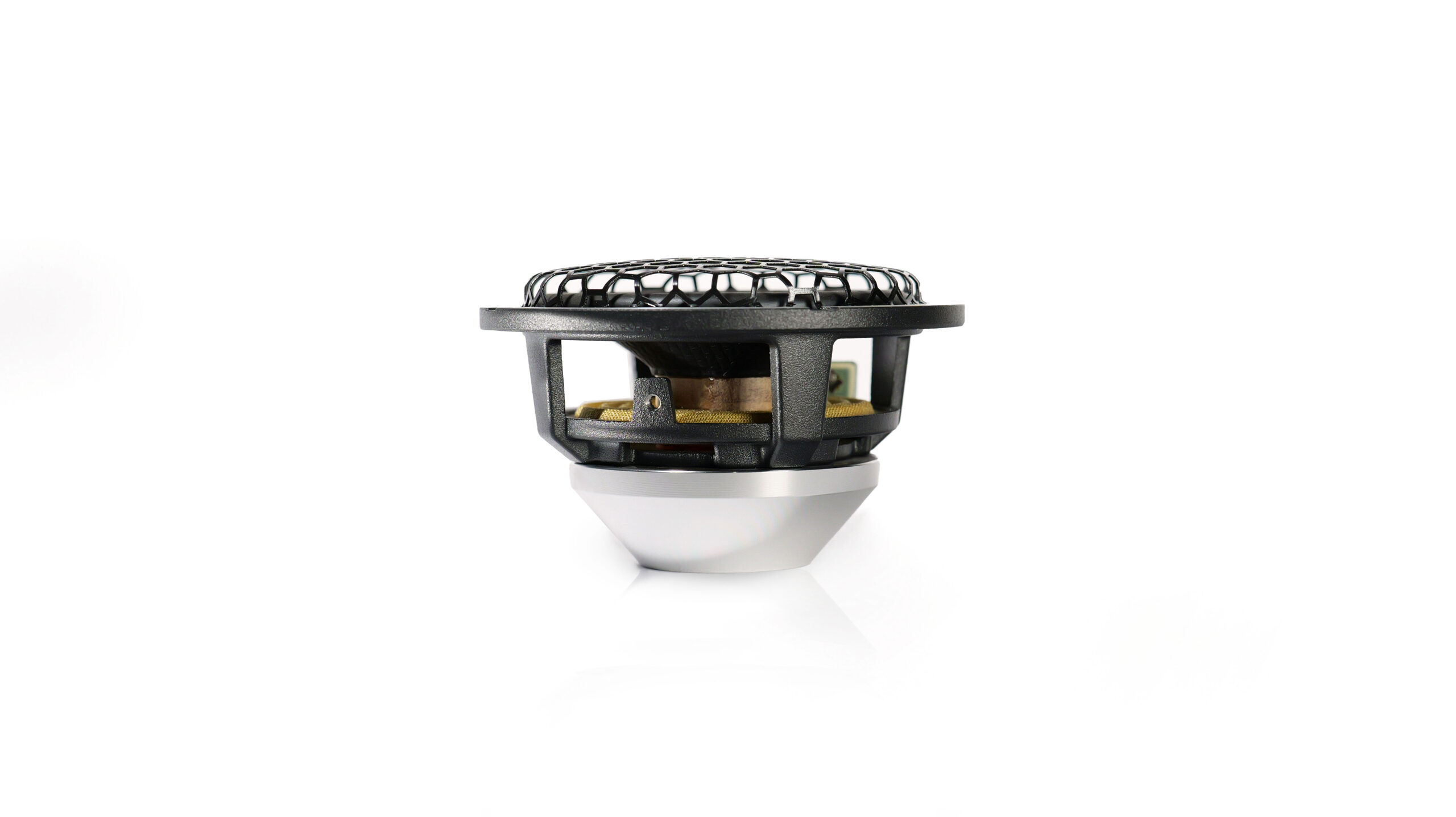

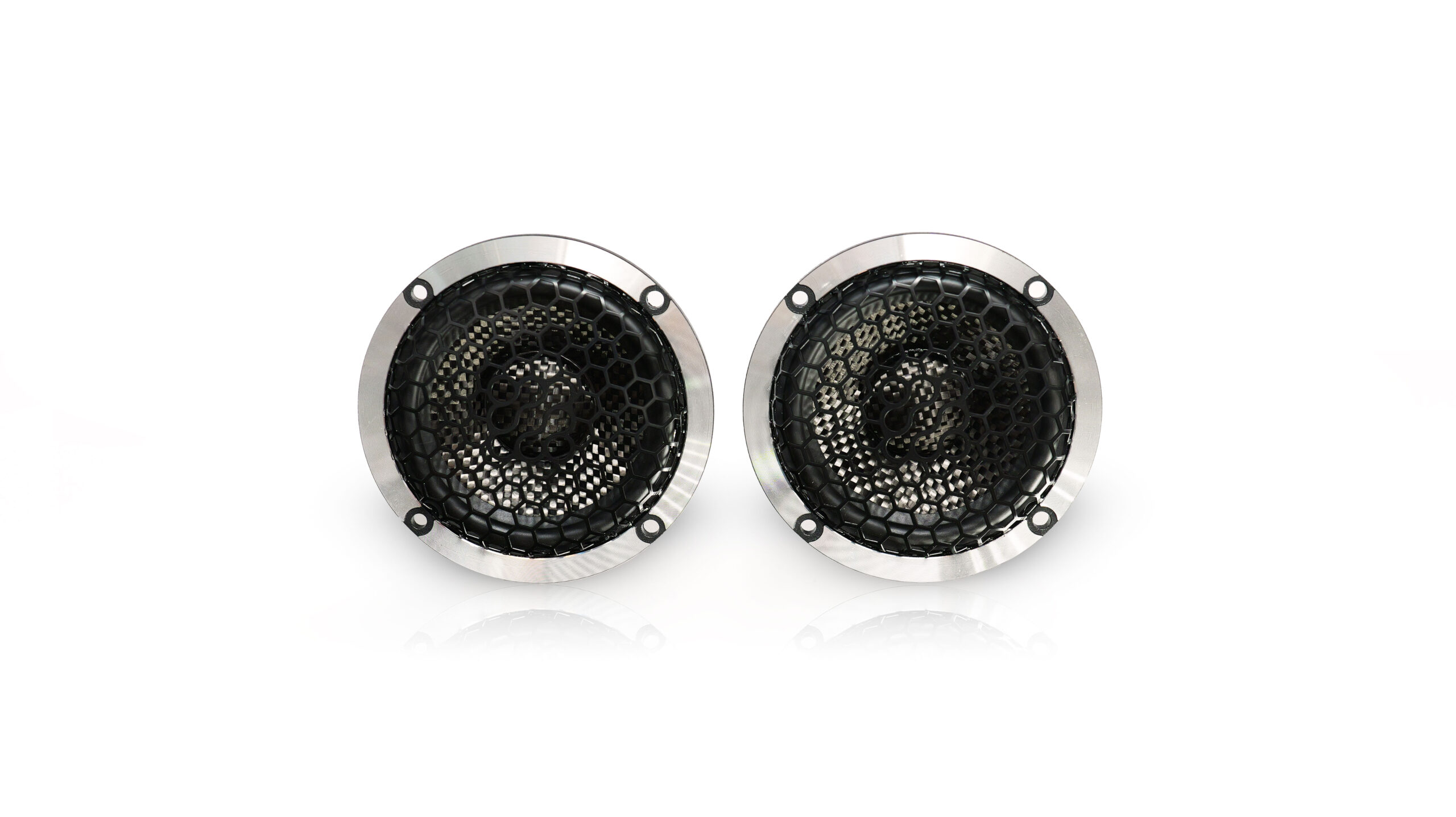

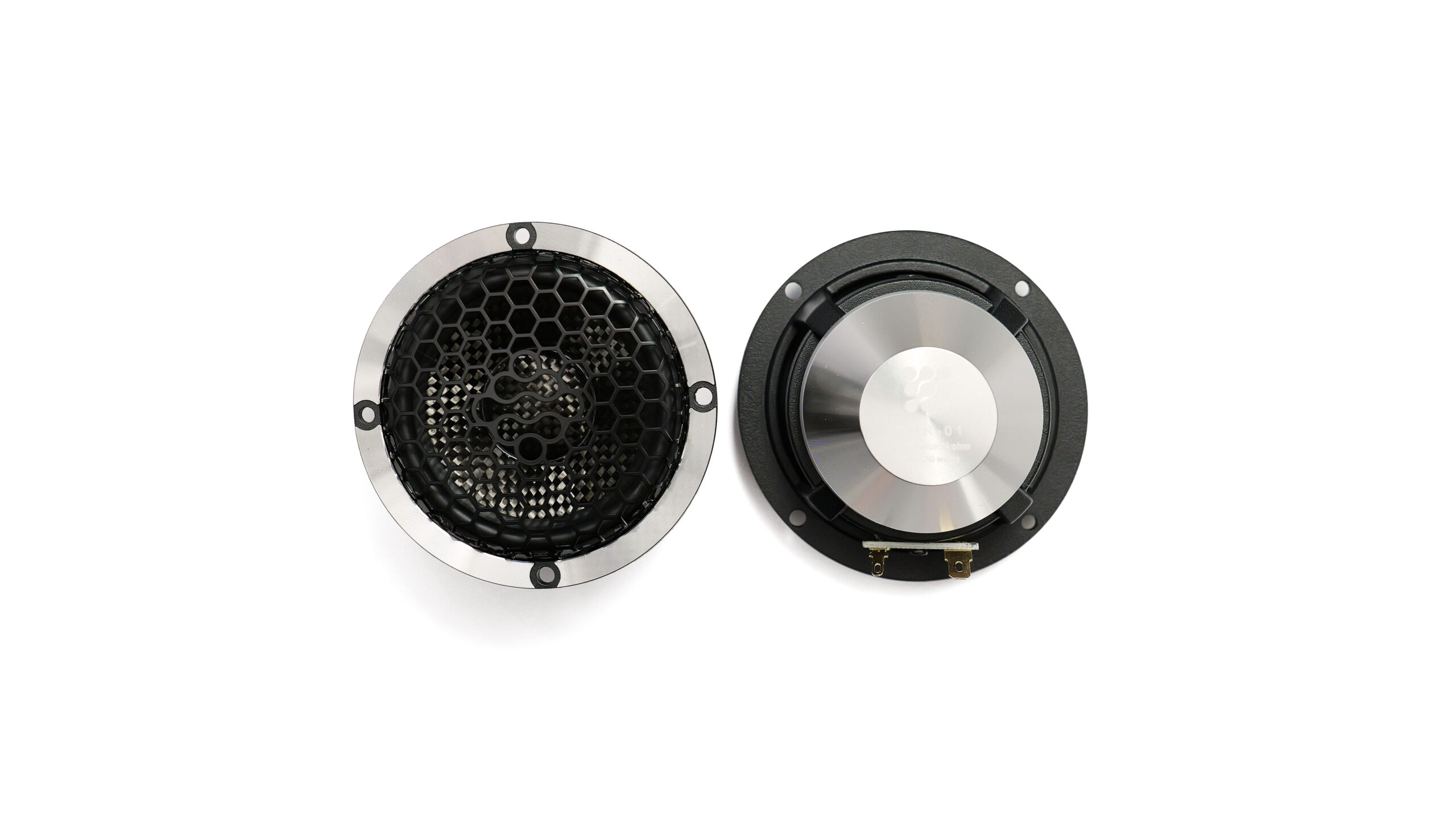

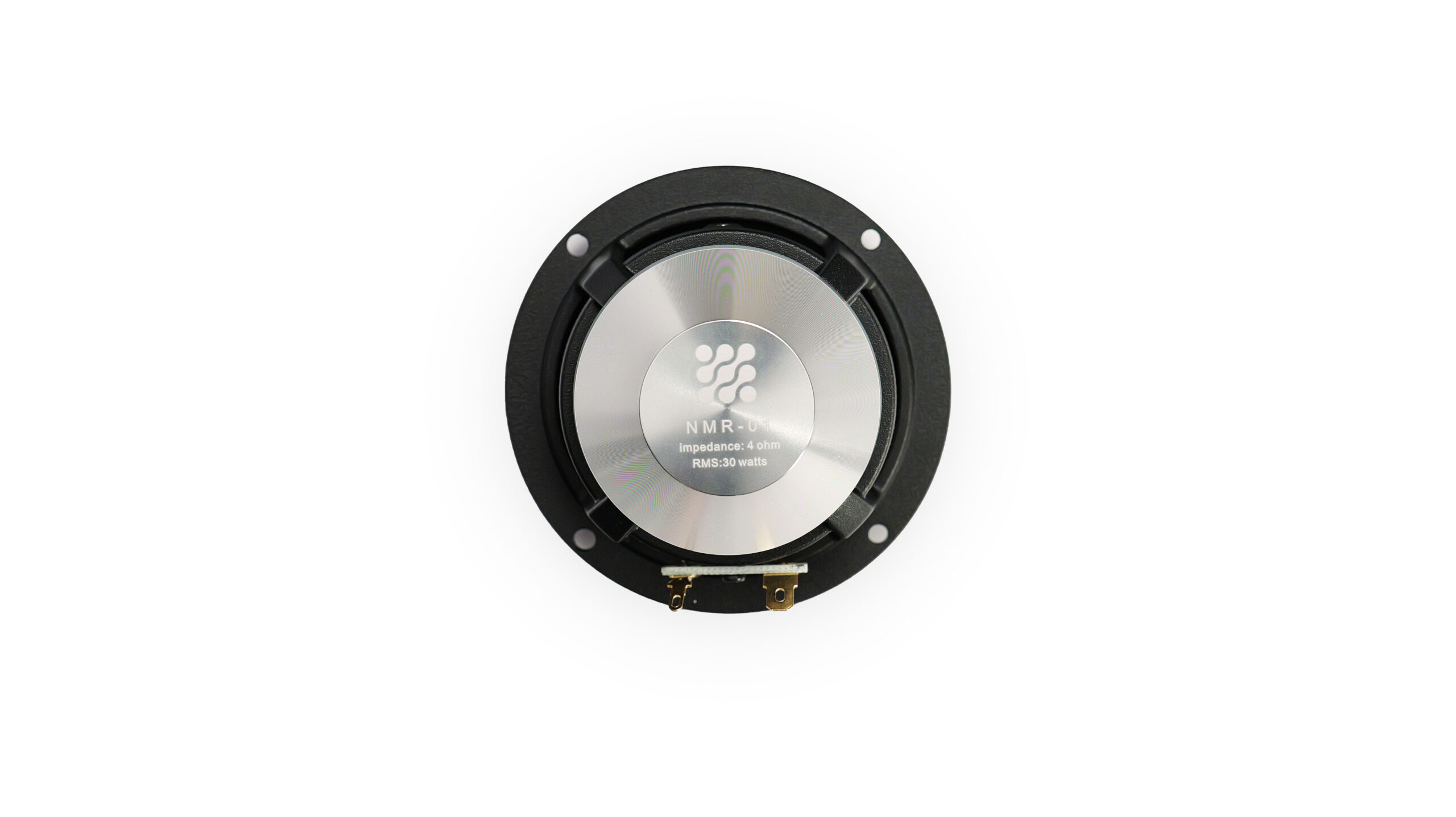

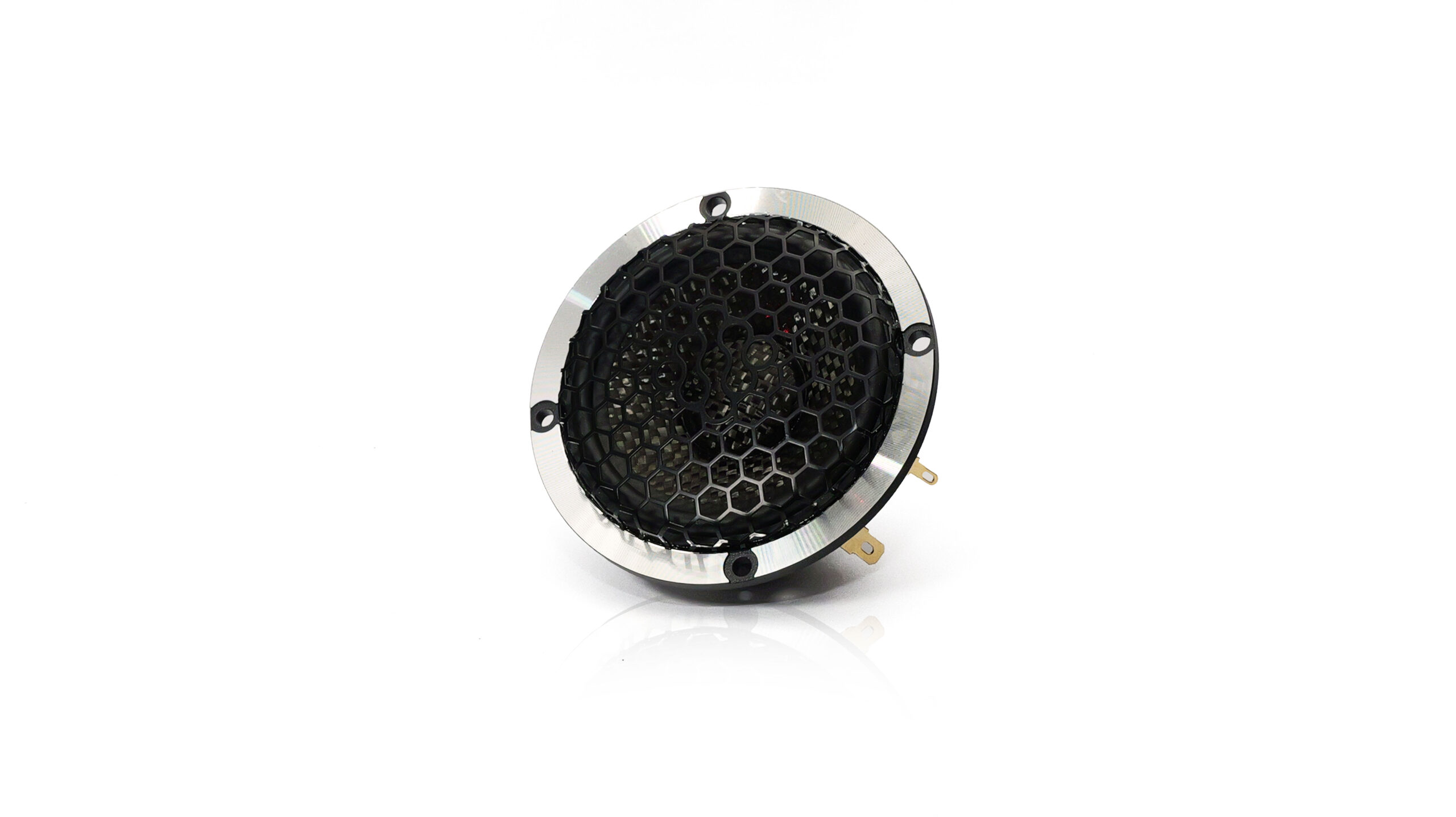

This 3.5-inch midrange speaker, crafted by hand, is designed to excel in reproducing midrange frequencies, making it ideal for vocal and instrument playback. It offers a balance between sensitivity and power handling, making it a versatile choice for a wide range of audio applications. The specified mounting dimensions and weight make it suitable for various speaker cabinet designs and installations.

Specification
Model
NMR-01 (3.5 Inch Midrange)
Product Process
Handmade
Impedance
4 Ω
Frequency response
120Hz - 16KHz
Sensitivity
≧ 88 db
Rated power
30 W
Peak power
60 W
Mounting Diameter
90 mm
Screw Diagonal Diameter
85 mm
Mounting Hole Diameter
75 mm
Mounting Depth
45 mm
Weight
238 gram
