MID BASS SERIES

NMB-03

Home / Products / Speaker / NMB-03

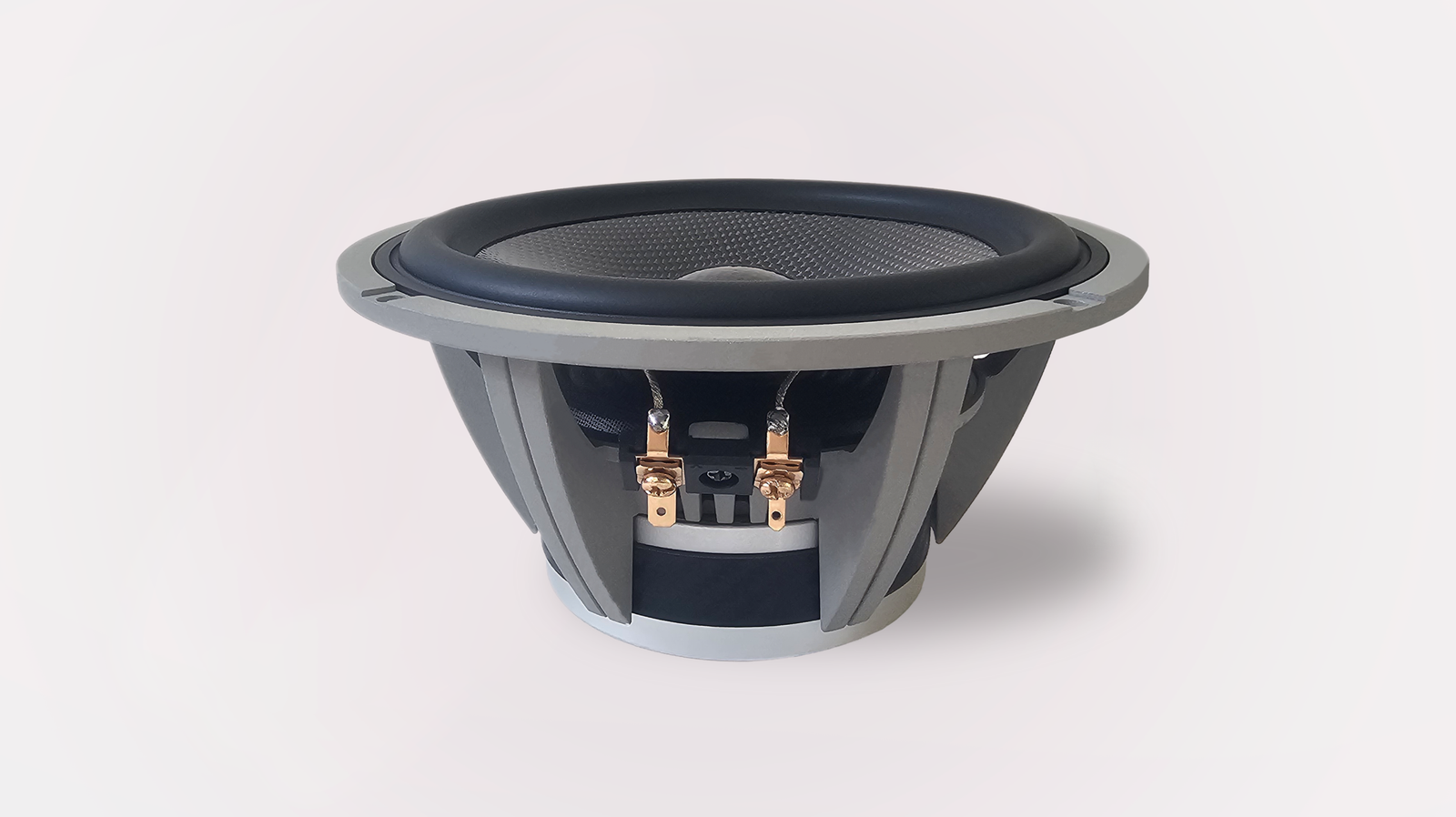

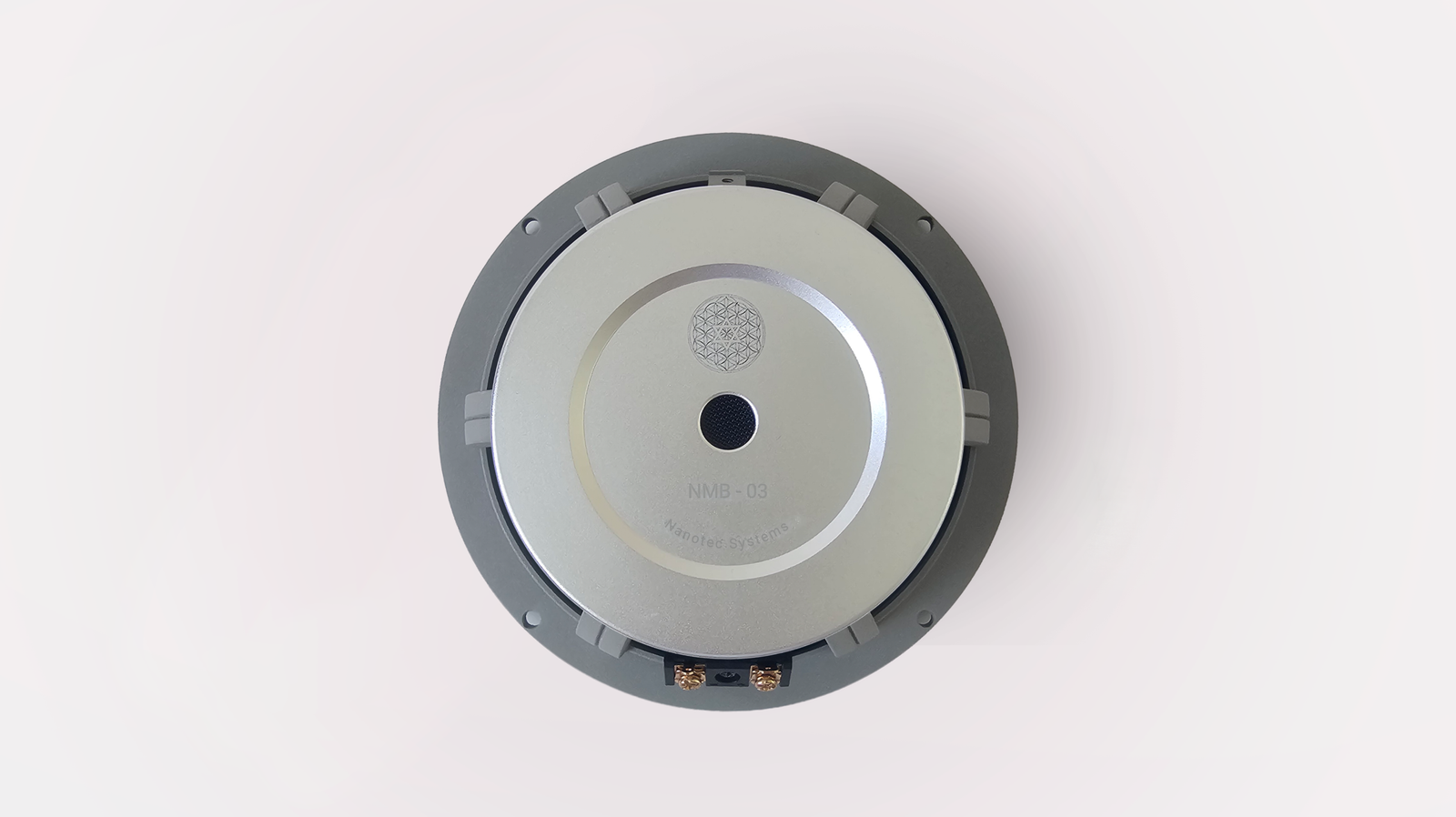

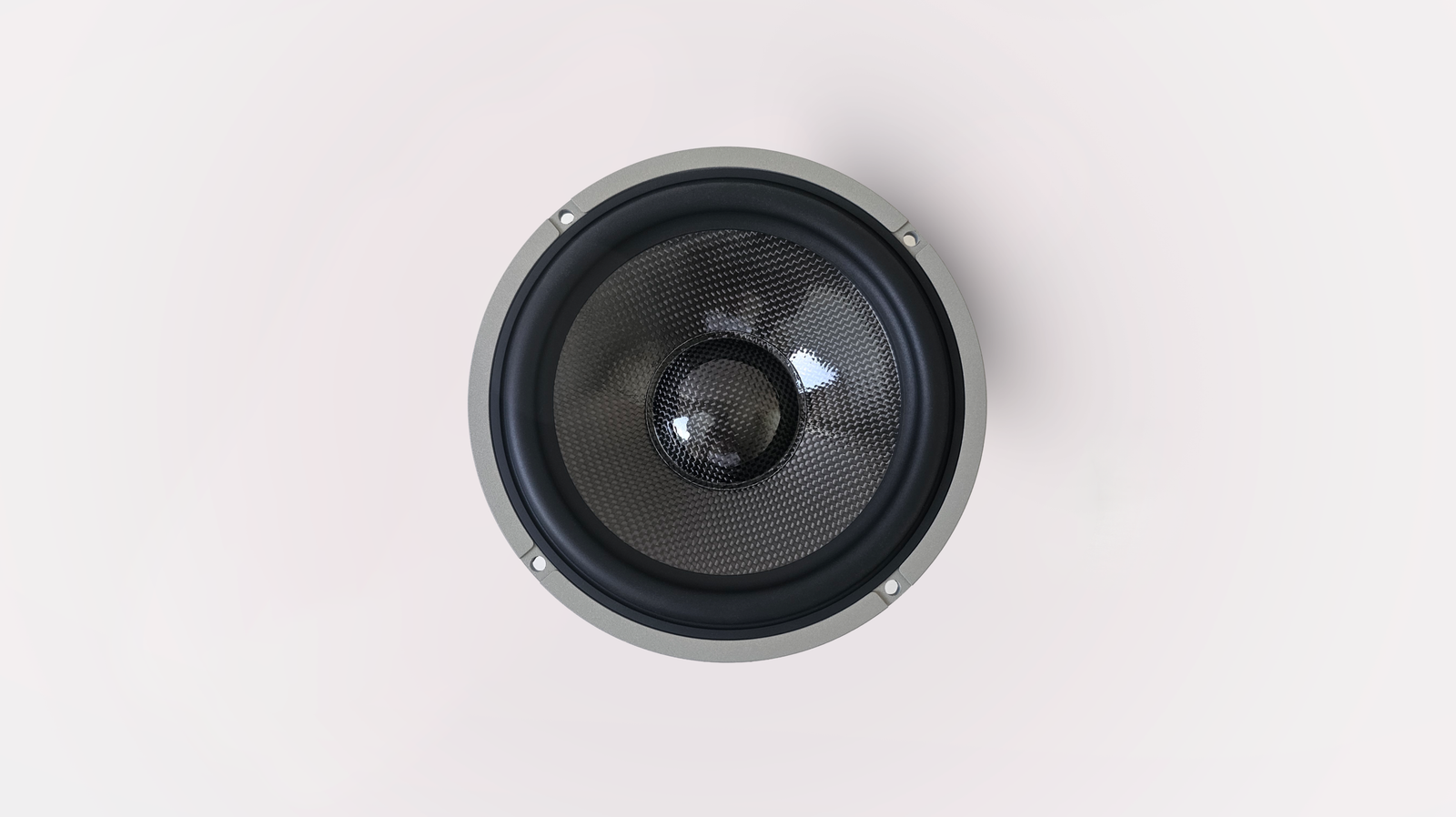

This 6.5-inch midbass speaker, special made with Carbon Cone. is designed to excel in reproducing midbass frequencies, making it ideal for delivering impactful and low-frequency sound. It offers a balance between sensitivity and power handling, making it suitable for a wide range of audio applications, especially those that require deep and punchy bass. The specified mounting dimensions and magnet size indicate its suitability for various speaker cabinet designs and installations.

Specification
Model
NMB-03 (6.5-inch Mid Bass)
Product Process
Carbon Cone
Impedance
4 Ω
Frequency response
45Hz – 10KHz
Sensitivity
≧ 87 db
Rated power
45 W
Peak power
80 W
Mounting Diameter
165 mm
Screw Diagonal Diameter
157 mm
Mounting Hole Diameter
145 mm
Mounting Depth
80 mm
Magnet Diameter
90 mm
Weight
1220 gram
