CORE SERIES

NTW-01

Previous slide
Next slide

This speaker, with its stainless steel housing and high-quality design, is well-suited for reproducing high-frequency sounds with clarity and precision. It offers a good balance between sensitivity and power handling, making it a versatile component for various audio applications. Its design and construction are aimed at delivering a robust and polished audio experience.

Specification
Model

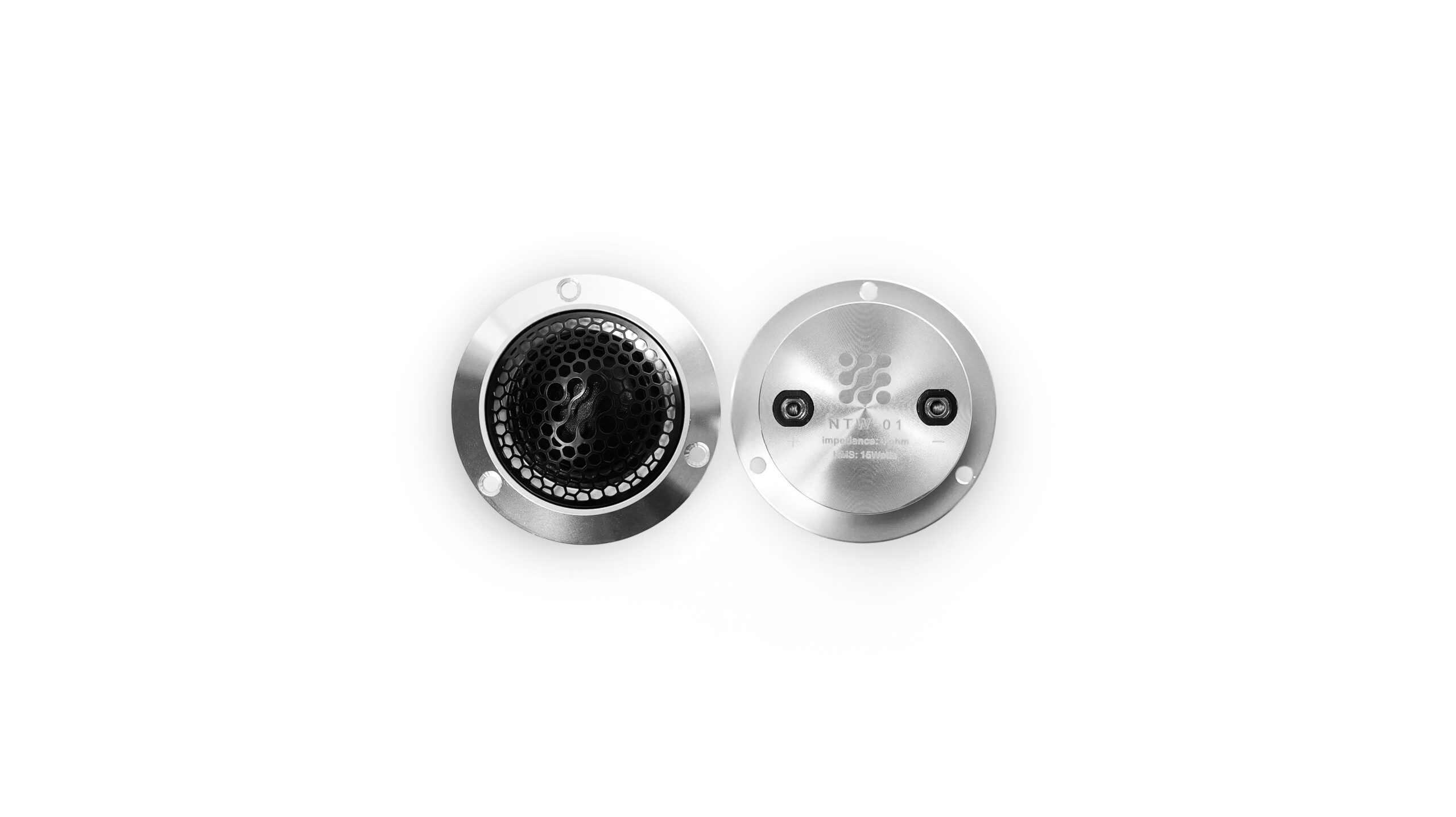

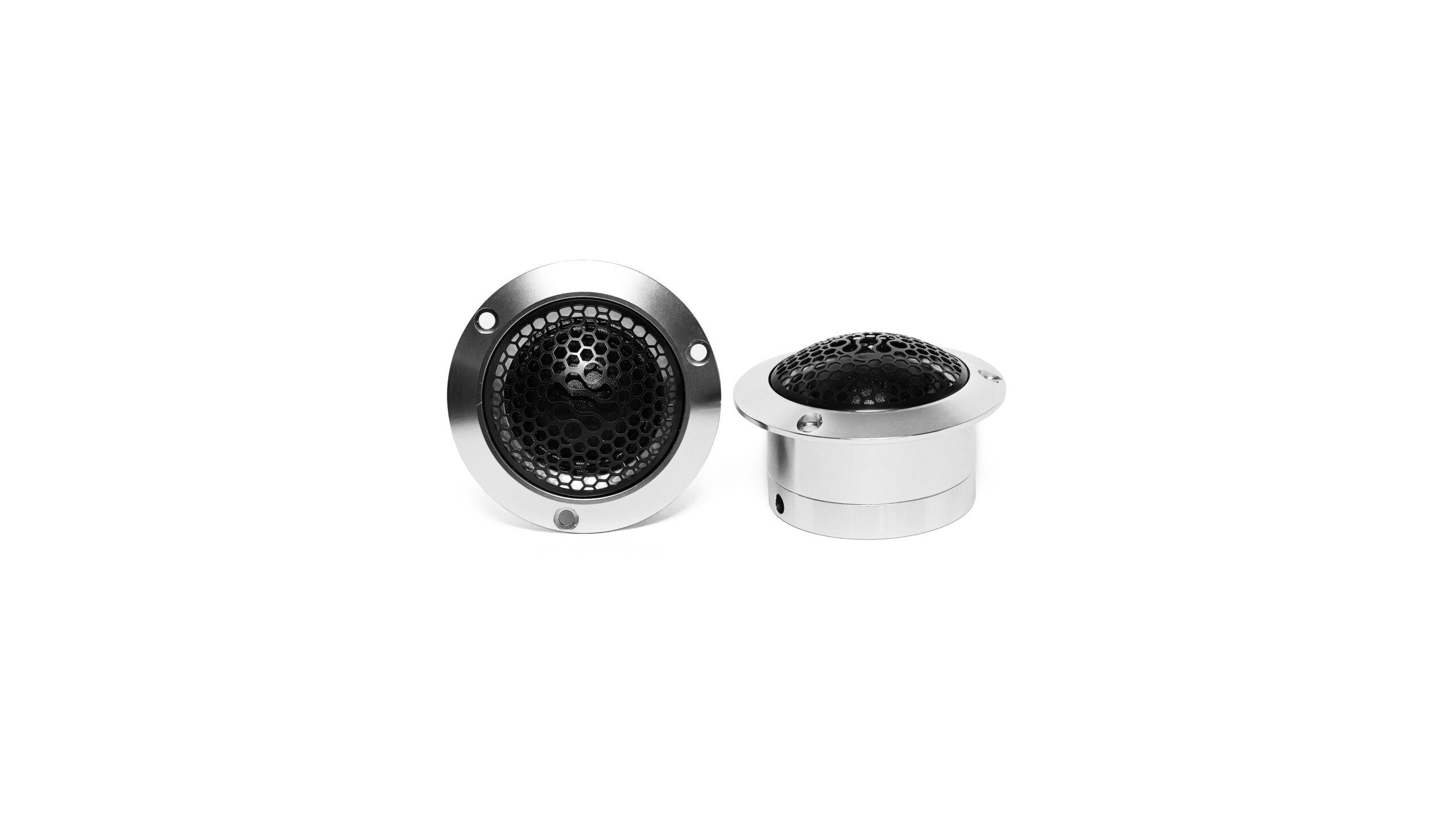

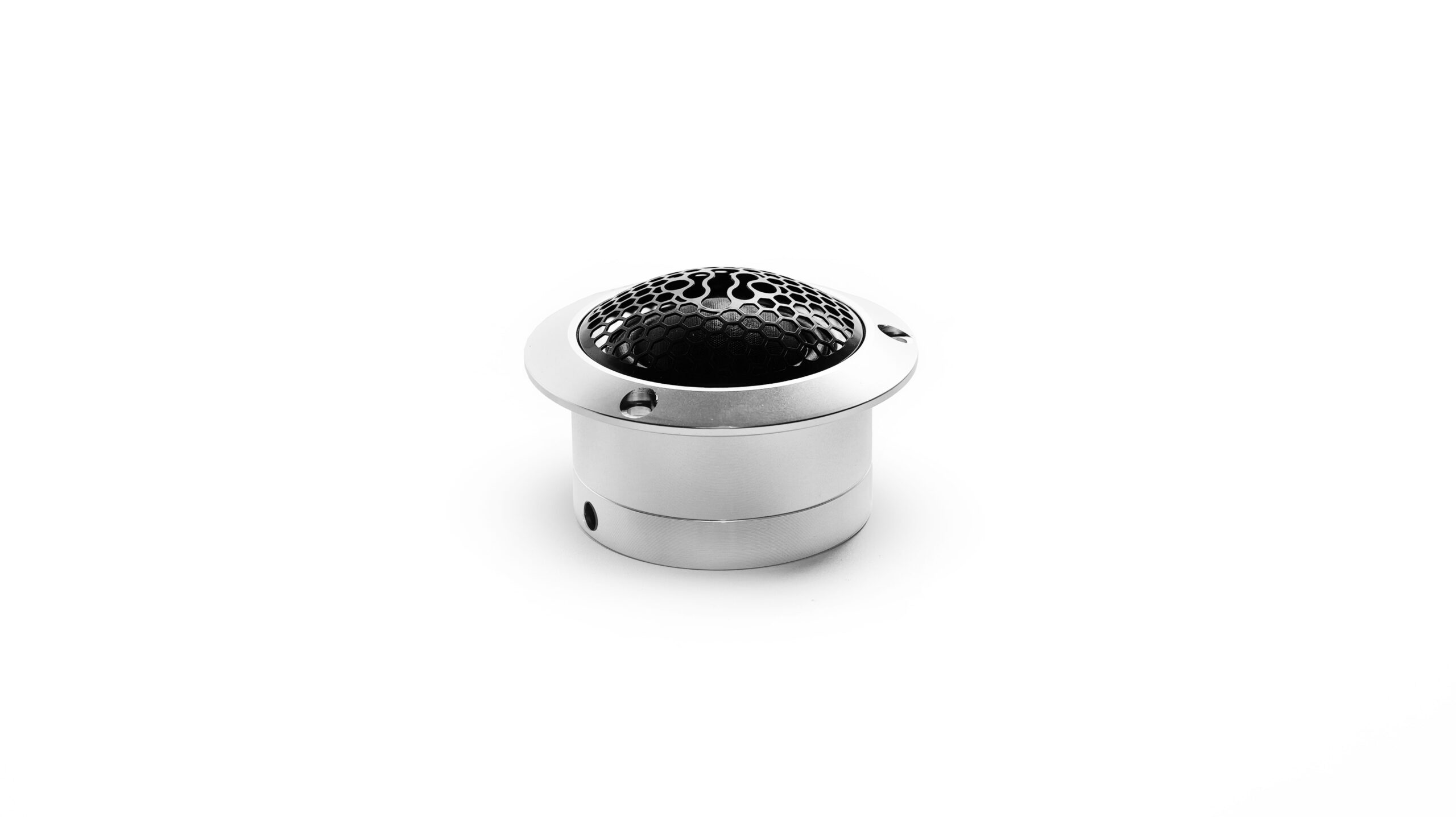

NTW-01 (25 Core Tweeter)
Product Process
Stainless steel housing, Hand polished
Product Design
1.5 Inch / 25 mm Silk dome with acoustic chamber opt. stainless steel fixing rings with rubber ring and scew set
Impedance
4 Ω
Frequency response
1KHz - 20KHz
Sensitivity
≧ 89 db
Rated power
15 W
Peak power
30 W
Mounting Diameter
60 mm
Screw Diagonal Diameter
45 mm
Mounting Hole Diameter
46 mm
Mounting Depth
25 mm
Weight
127 gram
